Yamaha Swap Bedplate (650-750-800 Hulls)

In stock ready to ship
This is the latest and newest version, lightweight at under 4lbs

Install Instructions

Want to run a Yamaha motor in your X2 or Any Kawasaki 650-750-800 Hull and do not want to deal with shaky aftermarket mounts and large plates? These new Yamaha bedplates allow for a more OEM like swap. Keep everything simple and lightweight.
This bolts directly to OEM Kawasaki 650-750-800 Mounts

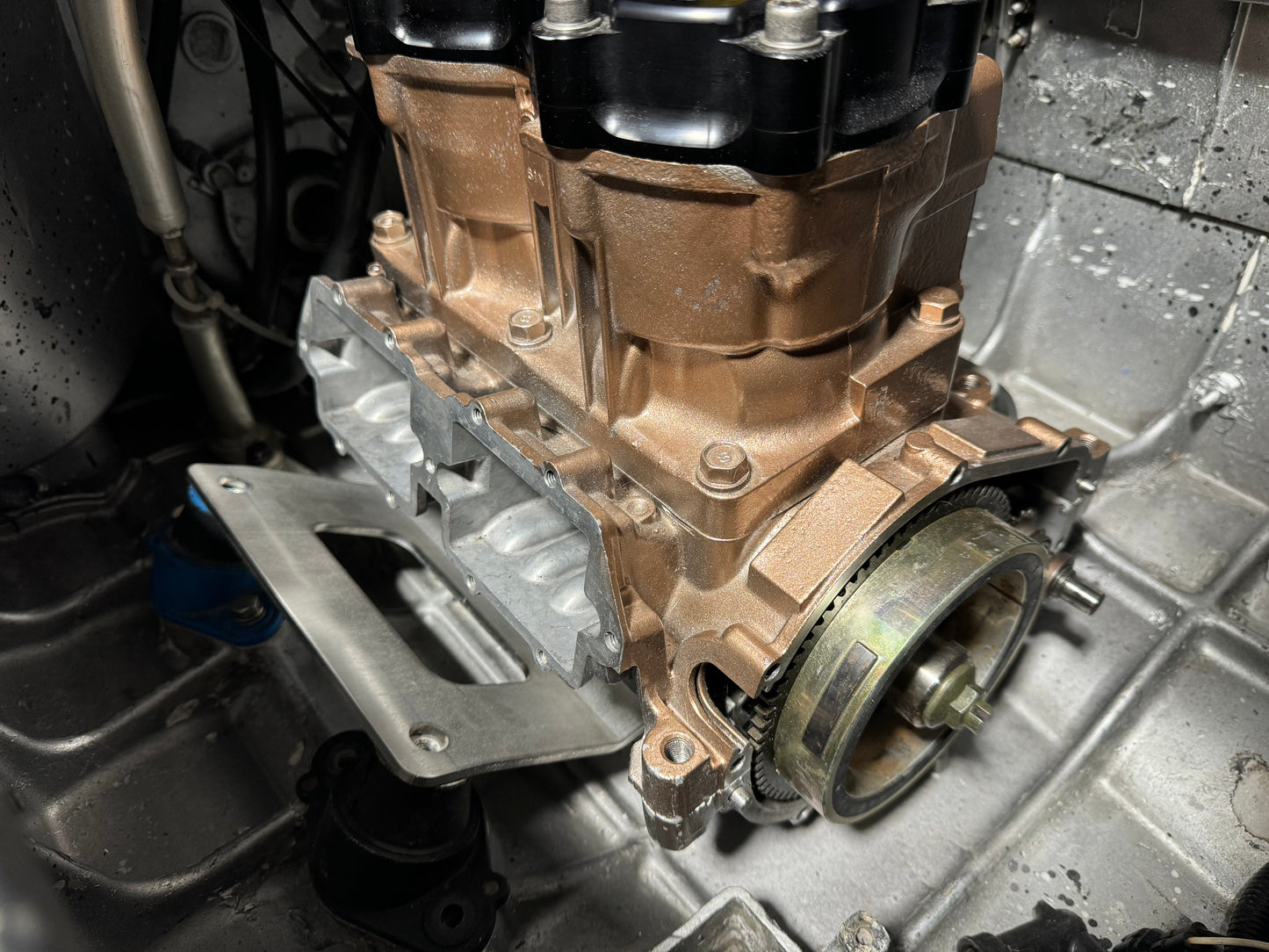

Simple, bolt this to the crankcase of the 650-701-760 using OEM torque specs.

A ADA coupler is needed to complete this swap, take the OEM Yamaha coupler off and install a ADA Superjet Crank coupler which allows the motor to couple to the Kawasaki driveline. Another option for my Yamaha driveline friends is to push the motor forward allowing the motor to couple to a VXR Pro midshaft, a Yamaha midshaft conversion and VXR pump setup.

Made out of Stainless Steel 304 Series

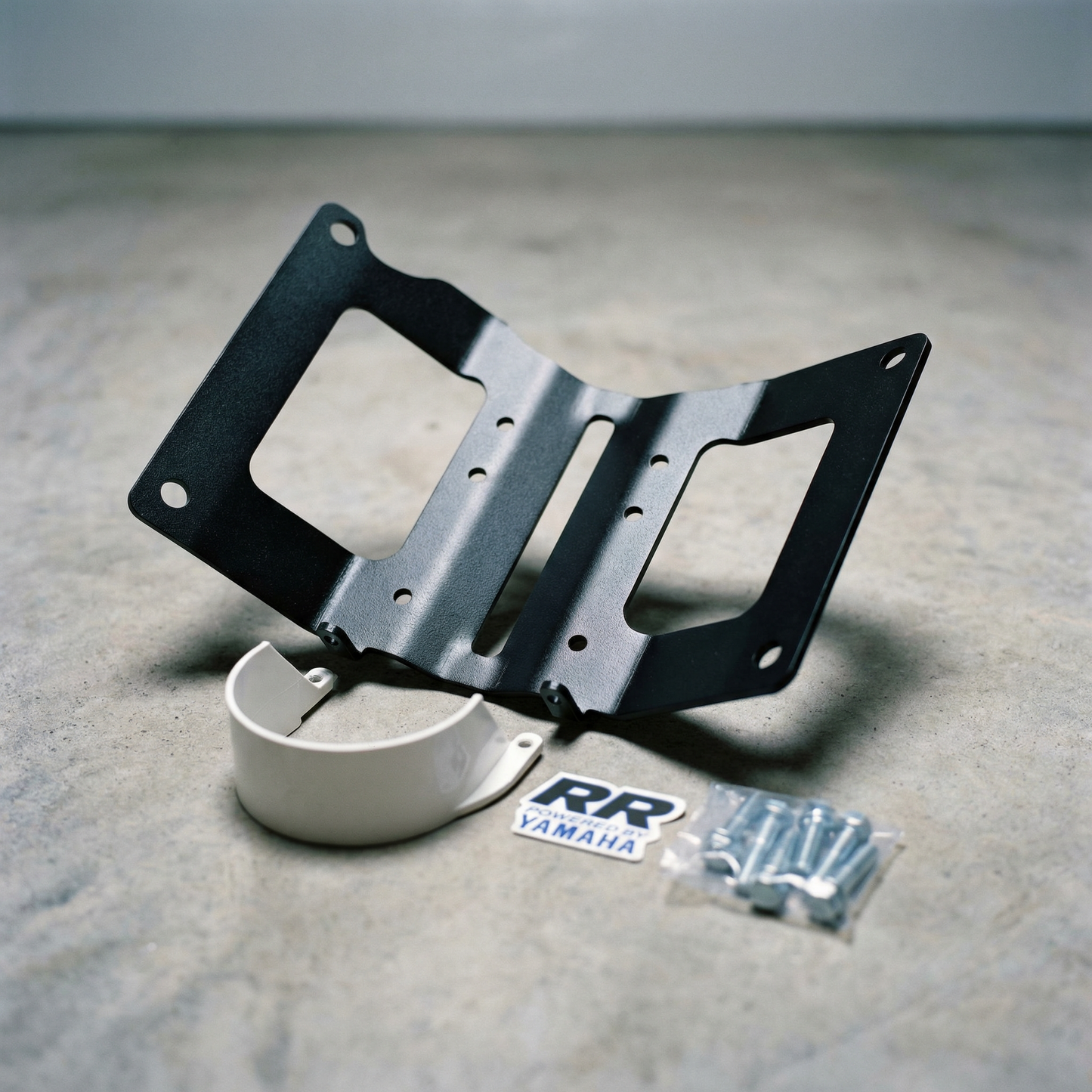

What is in the box:

1 Stainless Steel Yamaha bedplate for a Kawasaki mount setup
1 M10-1.25x40 (Old Cradle mounting point)
5 M10-1.25x50 (Old Cradle mounting point)
